Floor Standing Domestic Hot Water Boilers

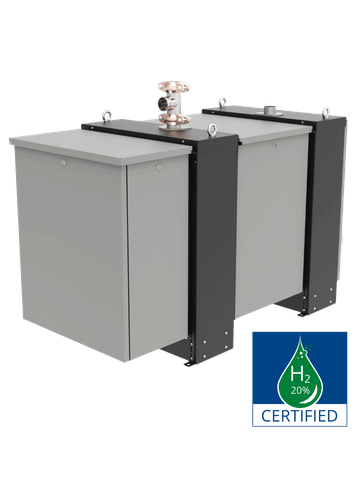

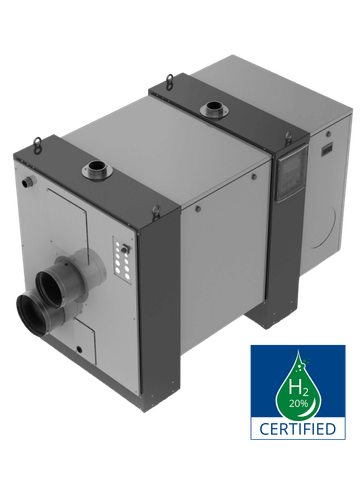

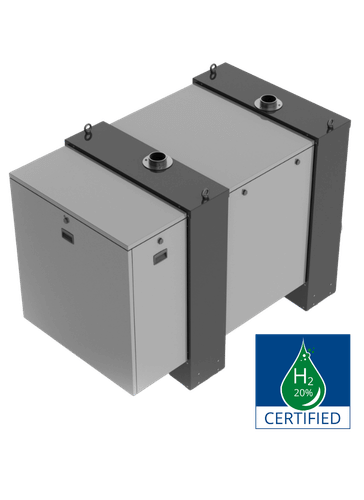

Hot Water Boiler IB-HW
The new range of IB high-efficiency domestic hot water boilers is available in four models: 375, 625, 875, and 1,200 kW. These advanced condensing boilers are designed to deliver maximum efficiency, reliability, and durability. Thanks to the innovative water-tube heat exchanger with an enlarged heat exchange surface and double coils, a seasonal efficiency of up to 98% is achieved. The fully integrated control and management system provides continuous insight into and control over all key operating parameters, ensuring optimal performance and efficient operation. An optional full-color touchscreen display is available.
The units are housed in a compact and robust enclosure that requires minimal floor space while offering excellent accessibility for inspection and maintenance. This makes the IB range highly suitable for professional applications where performance, operational reliability, and serviceability are essential.
The domestic hot water boilers are certified for natural gas blends containing up to 20% hydrogen.
- Available in four models: 375, 625, 875 and 1.200 kW

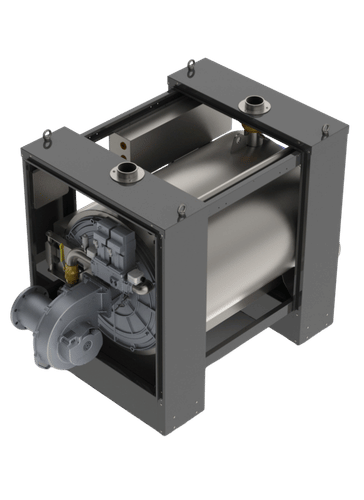

- 316L stainless steel Nhext heat exchanger
- Seasonal efficiency up to 98%
- Recovery rate at 60°C of more than 20 m3/h with a single water heater
- Extreme low NOx emission
- Integrated relays for main power supply and general circulator
- Easy placement with lifting lugs and side access of a forklift
- Certified for NG, LPG, Butane and up to 20% Hydrogen
- Full modulation up to 8:1
- Field convertible from natural gas to LPG
- Cascade up to 16 boilers
- Levelling castors and wheels optional
- Direct vent flexibility
- Easy installation and maintenance
- Available as boiler and water heater

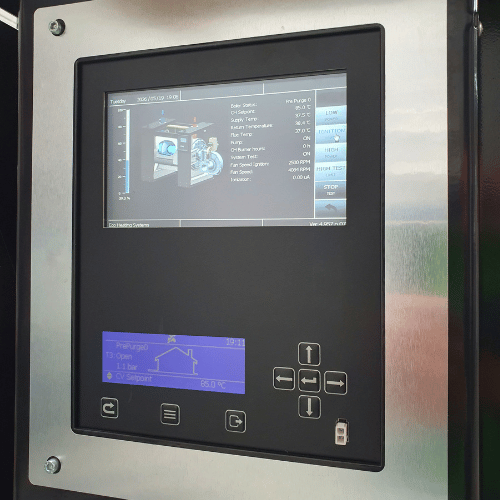

- Clear display with graphic design
- 7 inch touchscreen optional
- Easy to read fault history
- Modbus connection standard
- Bacnet connection optional
