Cascade opstelling en cascaderegelaar

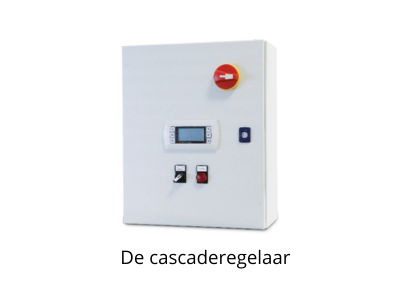

CV-ketels en warmtepompen kunnen in cascade opstelling worden geplaatst. Hierbij worden meerdere cv-ketels of warmtepompen aan elkaar gekoppeld. Door meerdere ketels of warmtepompen aan elkaar te koppelen wordt er een veel groter vermogen gerealiseerd, waardoor grote gebouwen in de industrie, bedrijfspanden, kantoren, appartementencomplexen of sportaccommodaties kunnen worden verwarmd. De apparaten die in cascade staan worden aangestuurd door een cascaderegelaar, een soort computer die zorgt dat de apparaten zo energie-efficiënt mogelijk met elkaar samenwerken.

Why a cascade arrangement

Cascade arrangements are used when a high heating capacity is required to meet the building's heating demand. Additionally, installing a cascade arrangement can be a good solution to ensure the reliability of the building's heating system. In the event of a malfunction in one of the devices, another device can take over the heating demand. It may also be the case that the existing boiler room cannot accommodate a large unit, but can house several smaller interconnected boilers or heat pumps.

Advantages Cascade arrangement

The following advantages of a heat pump or boiler in a cascade arrangement can be highlighted.

1. In a cascade arrangement, multiple devices are interconnected. If one device malfunctions, it does not disrupt the heat supply. Another device in the arrangement can take over the heating demand from the malfunctioning device.
2. High capacity. The devices in a cascade arrangement can collectively deliver a large heating capacity. This makes the setup suitable for larger buildings such as commercial properties, hotels, apartment complexes, schools, or sports facilities.
3. Energy efficiency. The devices in a cascade arrangement are controlled by a cascade controller. This controller ensures that the connected devices are evenly distributed in terms of load and operating hours. By managing this process automatically, heat is delivered in an energy-efficient manner. The collaboration between devices results in reduced gas consumption, lower CO2 emissions, and ultimately a lower energy bill.
4. Increased flexibility. By connecting multiple lower-capacity devices, the system becomes more adaptable. The devices can be arranged in various configurations, ensuring they will always fit within the available boiler room. Additionally, a device can be added later if the heating or hot water demand in the building increases.

Easy installation

Eco Heating Systems produces wall-mounted boilers for space-saving solutions and robust floor-standing boilers and heat pumps for large boiler rooms. In particular, the CB CH cv-ketel is geschikt om te plaatsen in een cascade opstelling vanwege de ingebouwde cascade manager. Elk gewenst vermogen is hiermee mogelijk, want er kunnen 16 ketels worden gekoppeld. De CB-CH ketels hebben een RVS warmtewisselaar, 0-10V en Modbus aansluiten waarmee ze voldoen aan de huidige MIA en Vamil eisen. De installatie van apparaten in cascade is betrekkelijk eenvoudig want Eco Heating Systems levert een cascade frame op maat, leidingwerk en een cascaderegelaar mee. Voor elke stookruimte en elk gebouw kunnen wij op maat een passende oplossing leveren.

Would you like to learn more about a cascade arrangement in your building?

Would you like to know which central heating boiler of heat pump is most suitable for your situation? It's important to determine the desired capacity and setup. Feel free to contact us; we'd be happy to assist you in finding the best solution.
